4994 White Paint Chamfered Box Newel

Clear

Current Selection:

Rise & Run Details

Please provide us with a valid stair angle to add this product to your cart.

Please Note - If your staircase contains a variable rise and run from step to step, you will need to work with a Project Manager after the sale to engineer the system.

Please check the box above to acknowledge the statement.

Ships in about 15 Business Days

Product Description

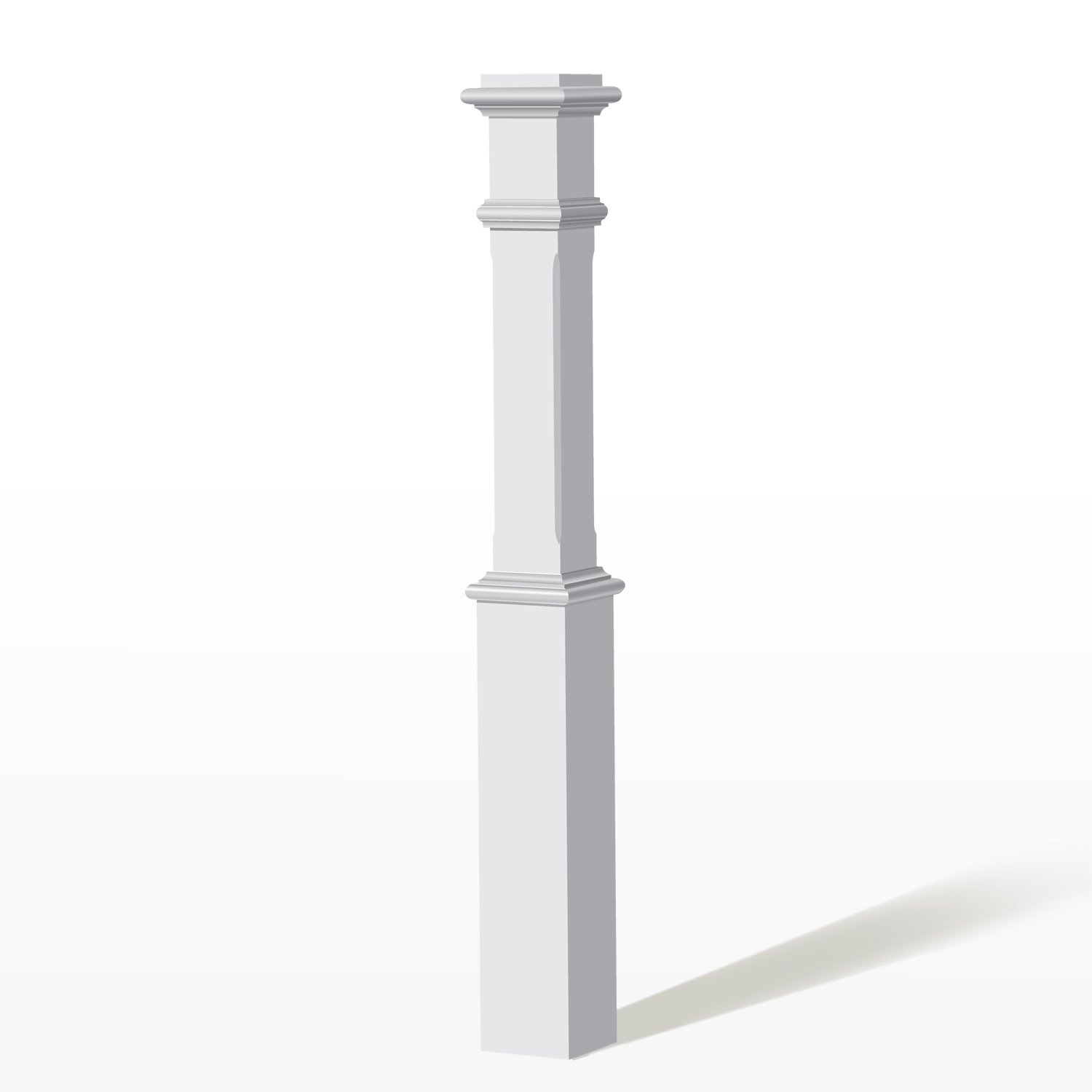

The 4994 Painted Chamfered Box Newel is elegant and timeless. Let the shape of this box newel speak for itself, with details such as gently beveled edges, fitted shoulder trim, and your choice of cap design. Keep this Painted Box Newel a neutral white, or paint it a bold color that makes a statement. Either way, you will enjoy the craftsmanship of this newel for years to come.

Key Features

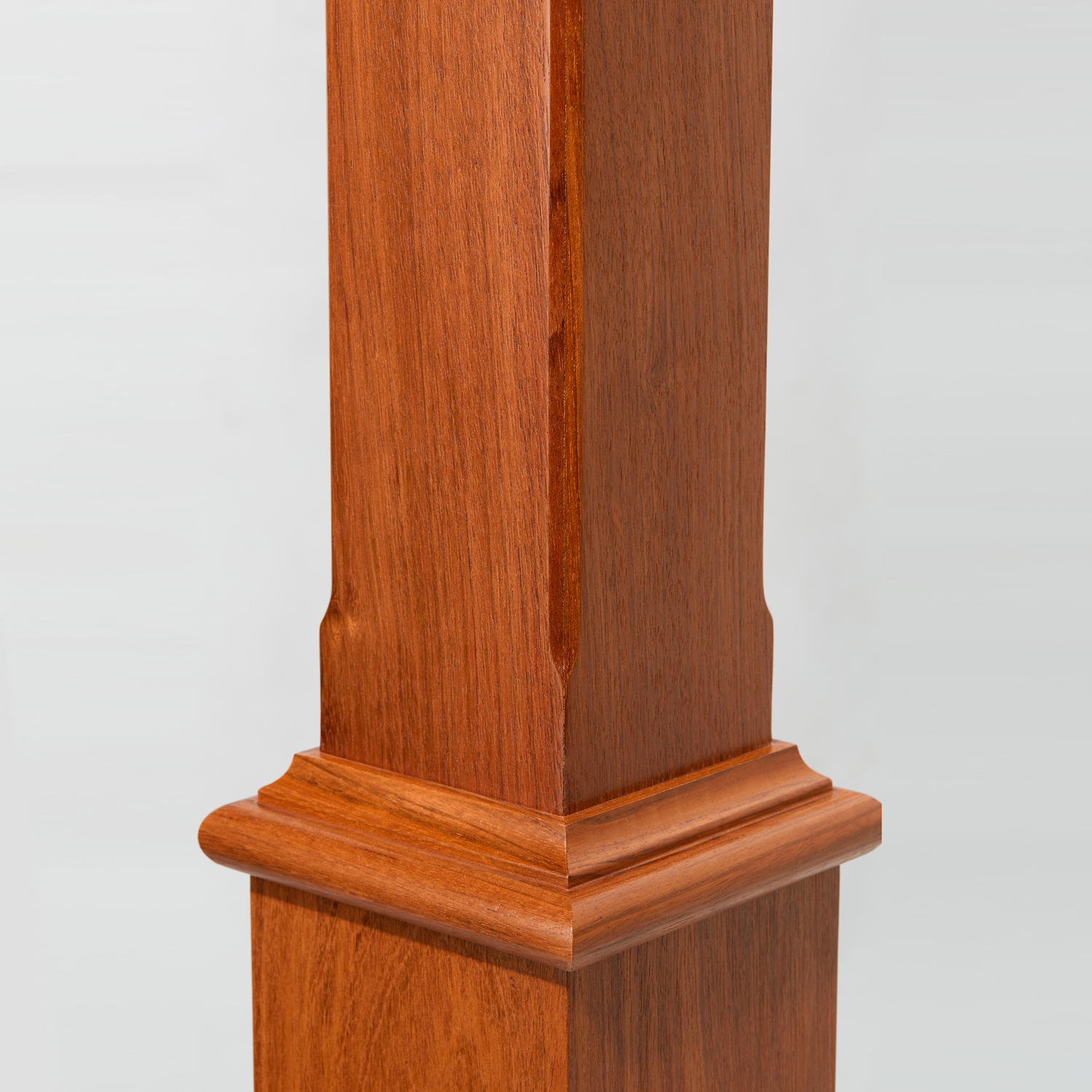

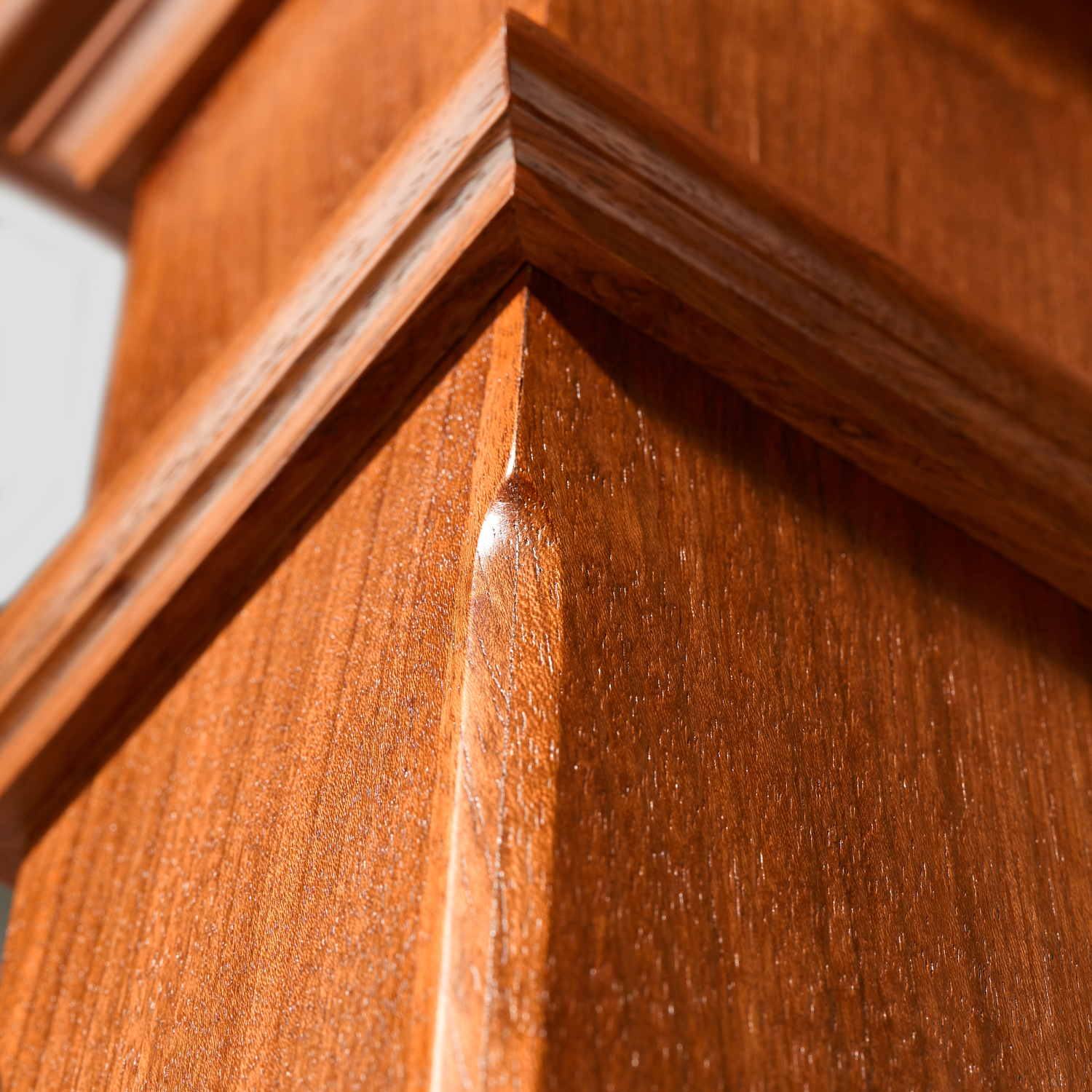

  • Chamfered Details
  • Strong, Larger Body

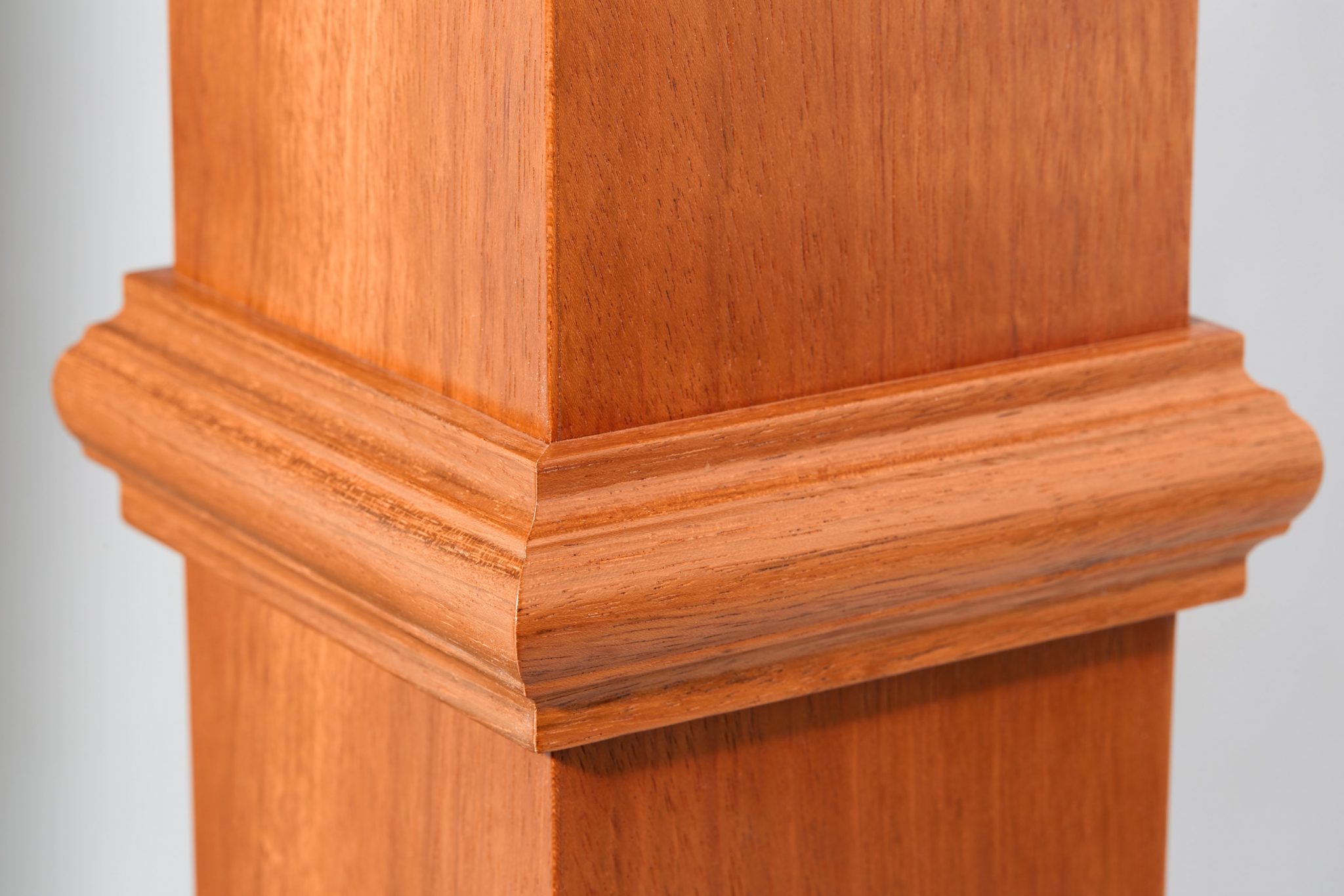

  • Shoulder Trim

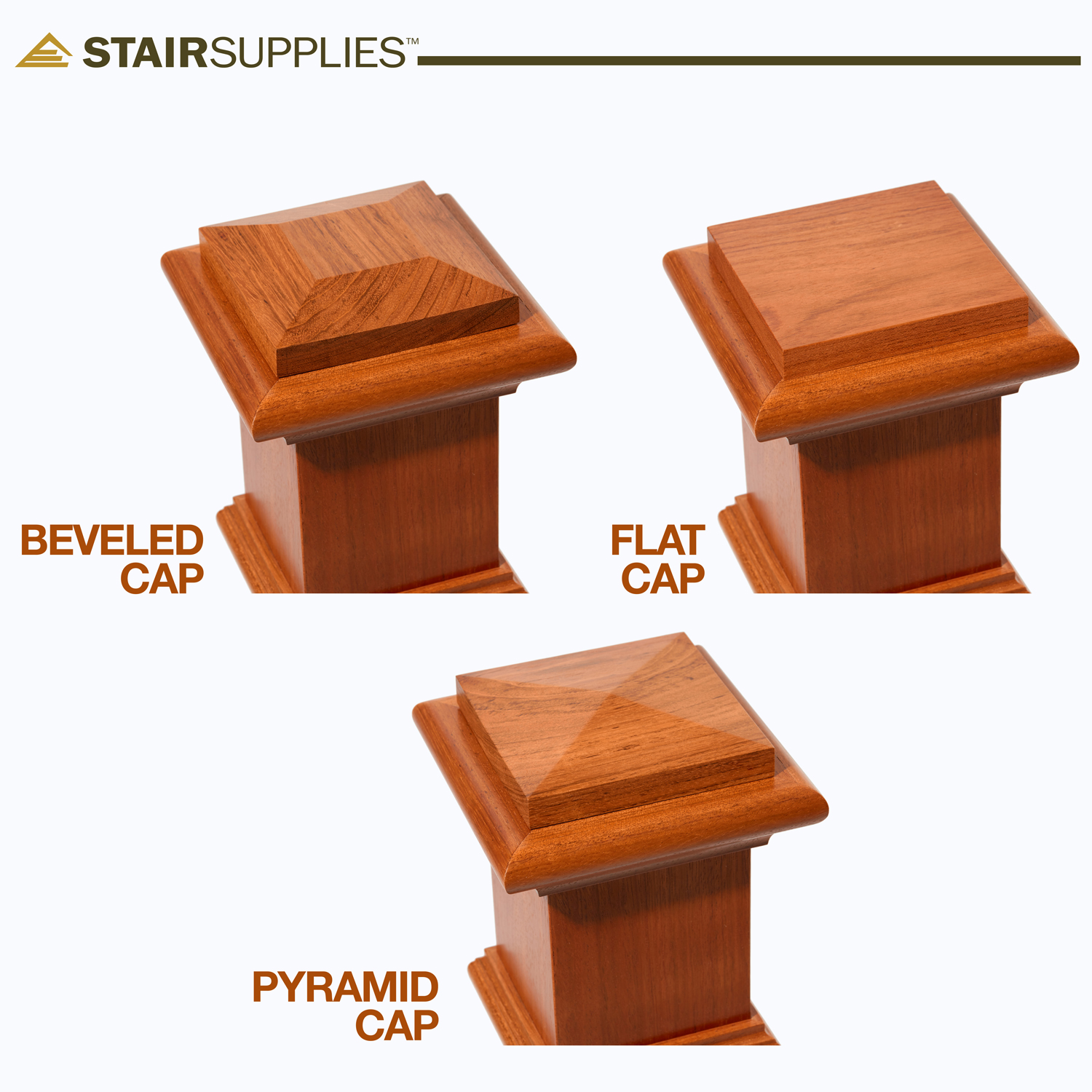

  • Customizable Cap
  • Painted
  • Easy to Install

Mounting System

To install your 4994 Painted Chamfered Box Newel, you will need the Box Newel Mounting Kit. Follow our Installation Video to ensure a secure fit. The Painted Chamfered Box Newel may be installed either on the surface of the stair tread or beside the tread. Due to their precise edges, we have found that box newels look best on a square starting step.

Handrail Attachment

Join handrail to your 4994 Painted Chamfered Box Newel using a rail bolt kit. Many configurations allow handrail to mount directly into the newel; however, if your handrail is joining with your box newel on a rake, you may also require a gooseneck handrail attachment.

Cap Attachment

The cap for this box newel is sent unattached to the newel body, allowing easy access for mounting handrail. Then, after handrails are attached, the cap can be secured on-site by applying a bit of wood glue and finishing nails for increased strength.

Splitting Box Newels

In order to maintain a consistent appearance when handrail must terminate into a wall, we offer Split Box Newels. Attach the partial newel to the wall, and your handrail can be secured like normal. If you would like your Painted Chamfered Box Newel split in half, please select “Split in Half” in the dropdown menu above.

Product Specifications

Product Dimensions

  • Overall: 6 1/4″ x 6 1/4″ x 60″
  • Bottom Block: 6 1/4″ x 6 1/4″ x 28″ tall
  • Top Block: 4 3/4″ x 4 3/4″ x 32″ tall
  • Space between Top & Shoulder Trim: 5″
  • Bottom Opening: 4 3/4″ x 4 3/4″

Composition

  • Bottom Block: Hollow, Soft Maple or Poplar, Painted
  • Top Block: Hollow, Soft Maple or Poplar, Painted
  • The Top Block extends down into the Bottom Block approximately 8” for strength and stability.

Painted Finish

These painted newels are painted with a white vinyl primer. Give the painted sections a quick, light sanding, and they can be painted to match your home.
